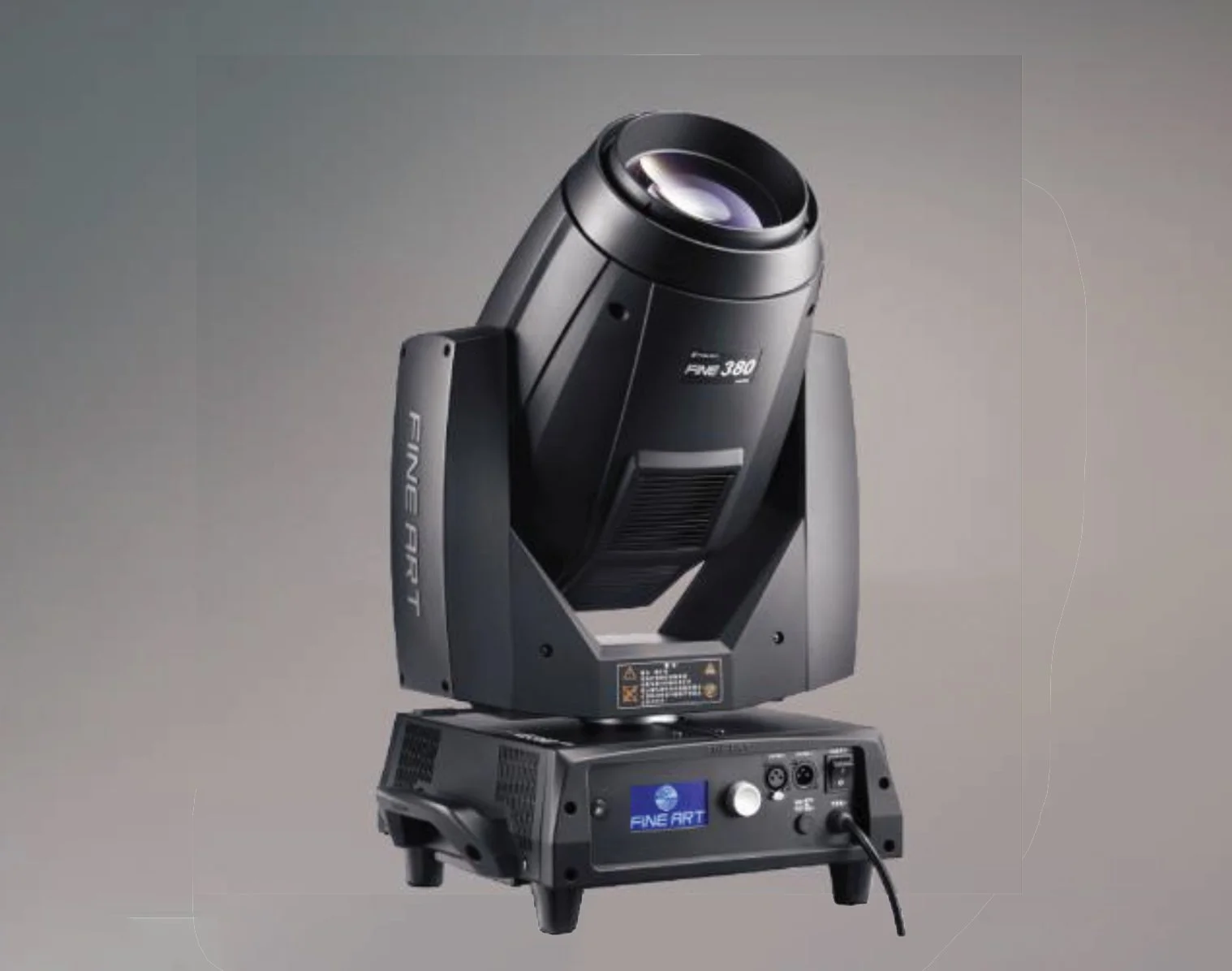

FINE 380 BSW/BEAM

FINE 380 BSW/BEAM

Specifications

600W Moving Head

OPTICAL

  • Lamp Source: OSRAM SIRIUS HRI 371W+

  • Angle:

    • Beam: 0°- 2.2°

    • Spot: 1.6°- 15°

    • Wash: 4°- 21° (1/2 peak) 8°- 42° (1/10 peak)

GOBO/EFFECTS

  • Multiple color temperature changes (6400K/3200K)

  • 11 color filters +white

  • 1 rotating gobo wheel with 8 gobos + open

    • Outside diameter: 13.9mm

    • Image diameter: 8mm

    • Material: Glass/Metal

    • Thickness: 1.1mm/0.5mm

  • 1 fixed gobo wheel with 13 gobos + open

  • Independent frost effect

  • Prism: one 8-facet prism + one 16-facet prism, bidirectional rotation

MOVEMENT

  • PAN=540°

  • TILT=270°

ELECTRONIC CONTROL

  • Protocol: DMX512

  • Channel Mode: 20(standard)/ 24(16 bit) / 27(extended)

  • Control Panel: LED screen + button’

  • Data Connector: 3Pin DMX

  • Cooling: Internal controllable active fan cooling

ELECTRICAL

  • Input Voltage: 100-240V ~ , 50/60Hz

  • Input power: 600W

  • Power factor: PF≥0.98

  • Power Connector: Neutrik Powercon

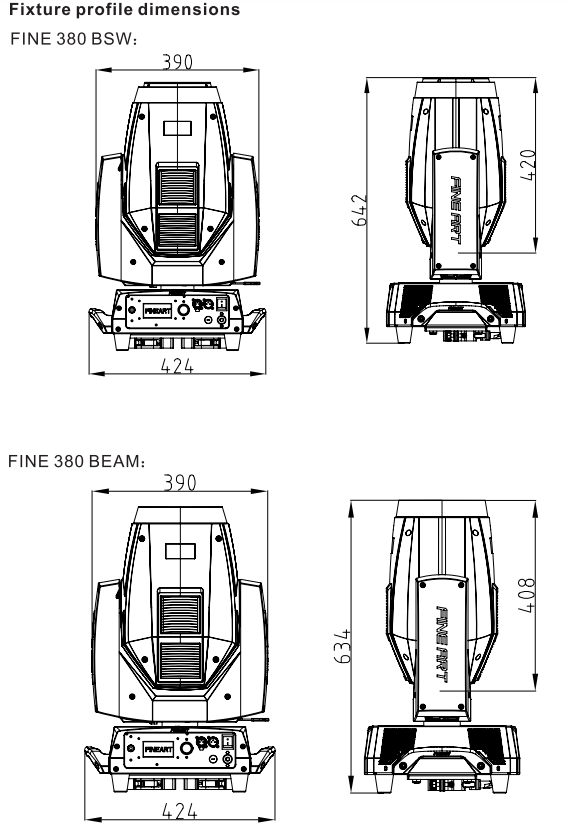

DIMENSION AND WEIGHT

  • Fixture Dimension: 424mm x 336mm x 658mm

  • Shipping Dimension: 870mm x 511mm x 881mm (2 per flight case)

  • Shipping Gross Weight: 98kg

  • Net Weight: 27kg (fixture)

IP Rating: 20

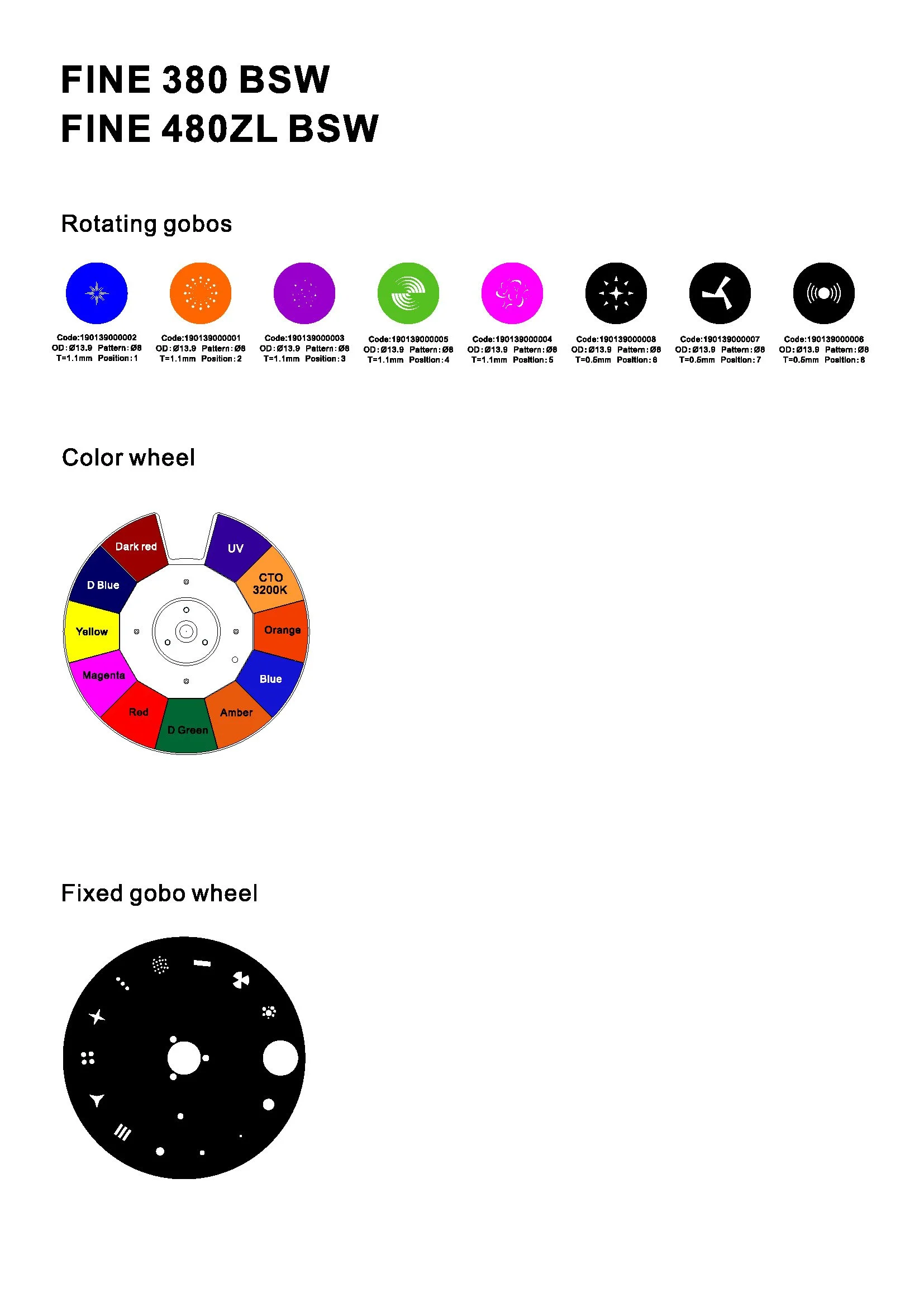

FINE 380 BSW gobos&colors.jpg

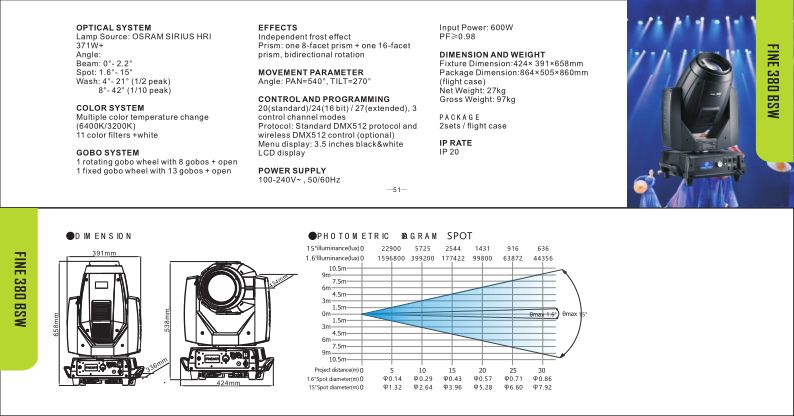

FINE 380 BSW.png
