FINE 1537 PIXIE

710W LED Moving Head Luminaire

Specifications

710W LED Moving Head Luminaire

OPTICAL

  • Light Source: 37x 15W (RGBW)

  • Life Span: ≥50,000 h

  • All optical range dimming, 65536 grade dimming accuracy

  • Fast strobe: 1-25Hz

  • Preset 65 color macro functions

  • Preset 64 effect macro functions

MOVEMENT

  • Pan 540°

  • Tilt 240°

ELECTRONIC CONTROL

  • Protocol: DMX512

  • Channel Mode: 21/35/132/169

  • Control Panel: LED screen + buttons

  • Data Connector: 3Pin DMX

ELECTRICAL

  • Input Voltage: 100-240V ~ , 50/60Hz

  • Input power: 710W

  • Power factor: PF≥0.95

  • Power Connector: Neutrik Powercon

DIMENSION AND WEIGHT

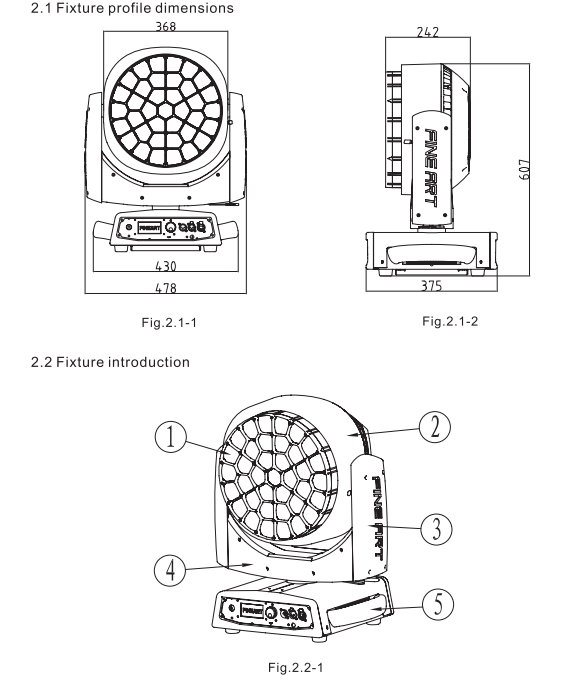

  • Fixture Dimension: 478mm x 375mm x554mm

  • Shipping Dimension: 930mm x 525mm x 837mm (2/flight case)

  • Shipping Gross Weight: 85kg

  • Net Weight: 23.5kg (fixture)

IP Rating: 20

fine 1537 pixie Photometric Diagram.png
