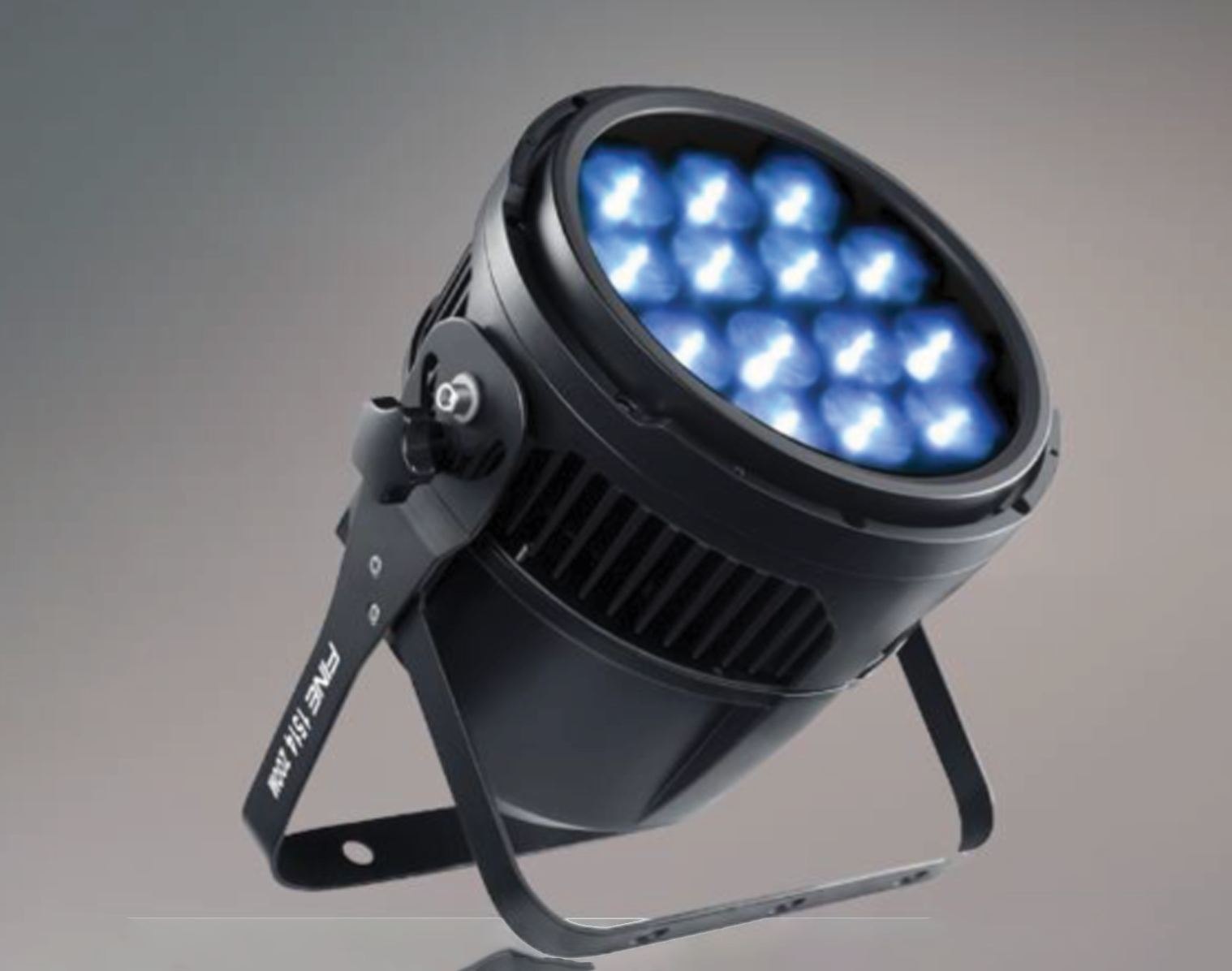

FINE 1514 ZOOM

190W LED Wash Light

Specifications

190W LED Wash Light

OPTICAL

  • Light Source: 14x 15w LEDs (RGBW)

  • Electronic zoom: 12°-27°(1/2 peak Angle) 23°-45° (1/10 peak Angle)

  • Color Temperature: 2700K-8000K

  • 0-100% linear dimmer

ELECTRONIC CONTROL

  • Protocol: DMX512 or master/slave control mode

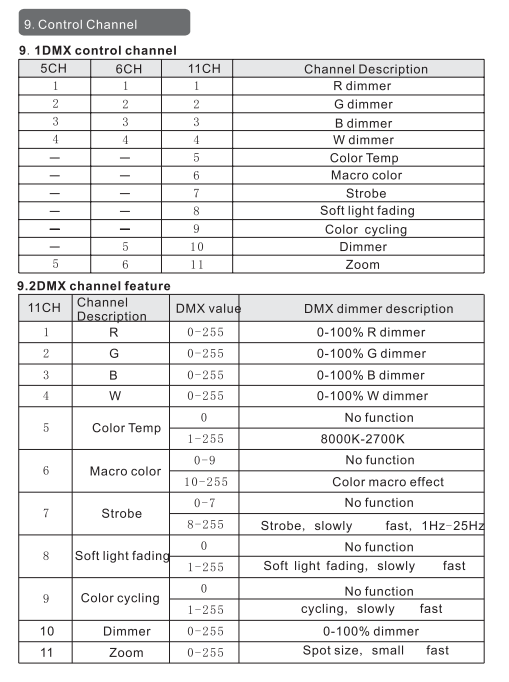

  • Channel Mode: 5/6/11

  • Control Panel: LED screen + buttons

  • Cooling: Passive Convection

  • Data Connector: 3Pin IP-rated data connector

    • 3pin DMX Adapters available for indoor use

ELECTRICAL

  • Input Voltage: 100-240V ~ , 50/60Hz

  • Input power: 190W

  • Power factor: PF≥0.98

  • Power Connector: IP-rated power connector

    • Neutrik Powercon adapters available for indoor use

DIMENSION AND WEIGHT

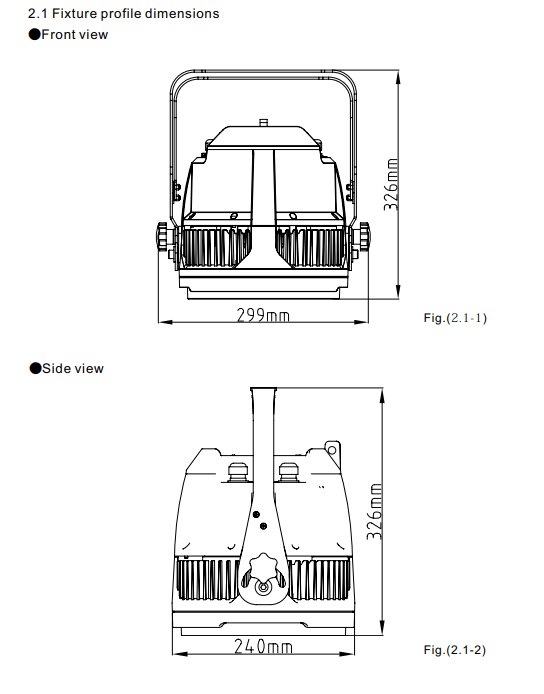

  • Fixture Dimension: 302mm x 240mm x 326mm

  • Shipping Dimension: 906mm x 556mm x 556mm (6/flight case)

  • Shipping Gross Weight: 88.6kg

  • Net Weight: 9kg (fixture)

IP Rating: 66

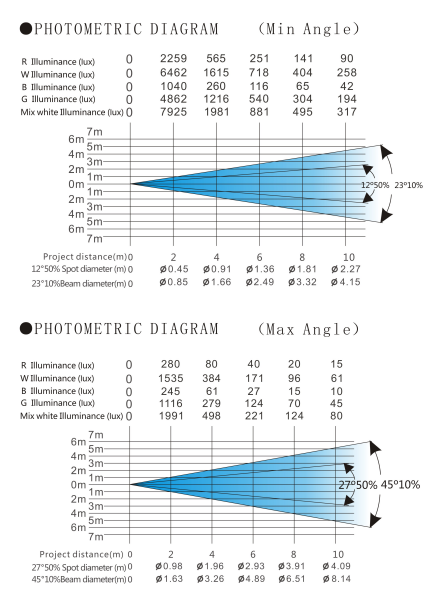

Fine 1514 Zoom photometrics.png
