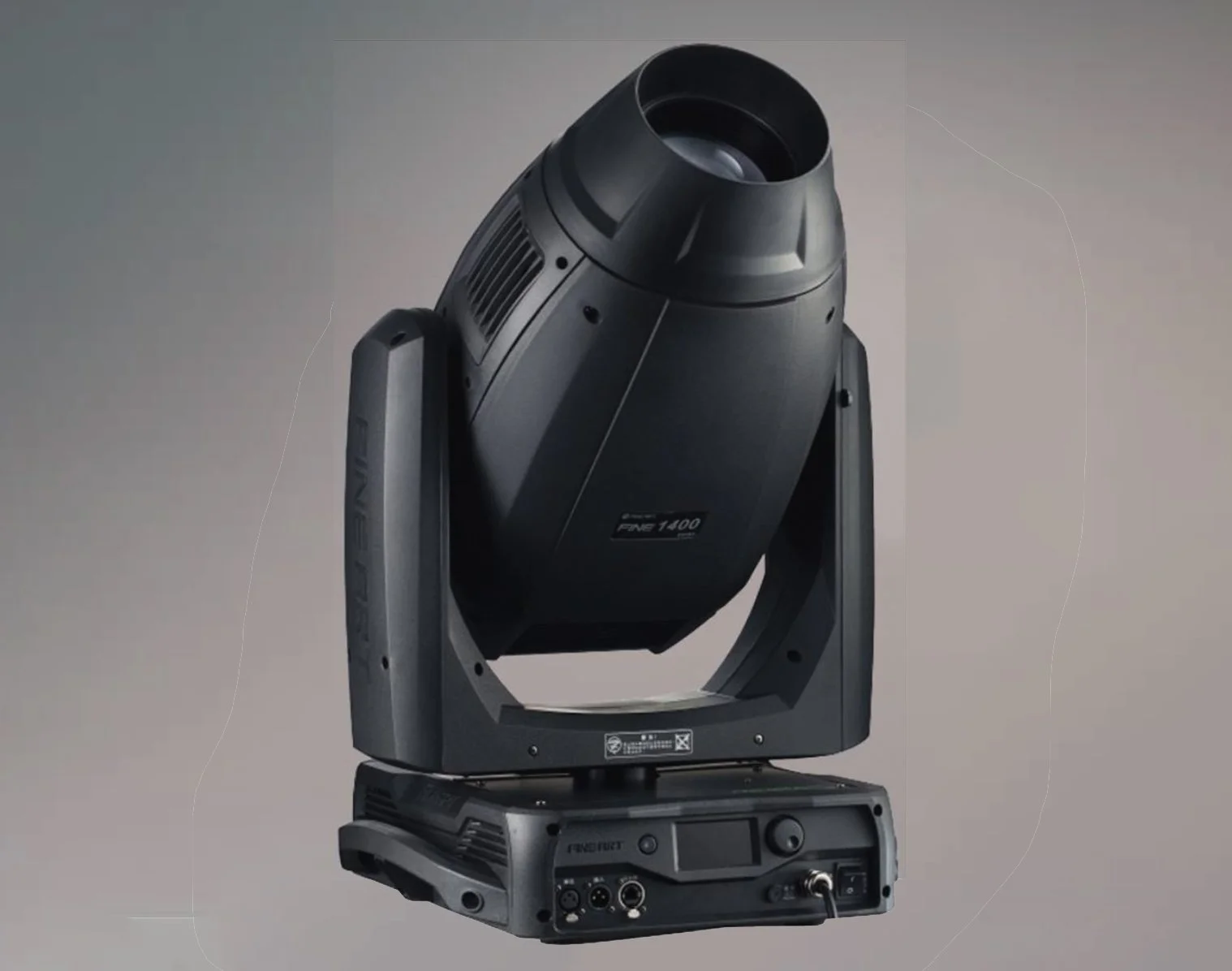

FINE 1400ZL PERF

FINE 1400ZL PERF

Specifications

1850W High Output Moving Head

OPTICAL

  • Light Source: OSRAM lok-it 1400-PS_Brilliant

  • Optical Lens Diameter: 140mm

  • Overall Luminous Flux: ＞35,000lm

  • Evenness: ＞80%

  • Zoom Range: 8°-50°

  • CRI: Ra＞95

GOBO/EFFECTS

  • CMY infinite color mixing system

  • CTO color temperature linear adjustment (2700k-6500K)

  • 7 color filters + white

  • 1 rotating gobo wheel with five bidirectional rotating & positioning gobos

    • Outside diameter: 37.3mm

    • Image diameter: 26mm

    • Material: Glass

    • Thickness: 1.1mm

  • 1 animation wheel

  • 1 rotating 4-facet prism, bidirectional rotation

  • Independent soft light frost effect

  • Electric linear frost

  • Fast electric iris

MOVEMENT

  • PAN=540°

  • TILT=270°

ELECTRONIC CONTROL

  • Protocol: DMX512, Art-net

  • Channel Mode: 32 (standard)/ 35(16Bit)/ 42 (extended)

  • Control Panel: LED screen + buttons

  • Data Connector: 3Pin DMX

  • Cooling: Internal controllable active fan cooling

ELECTRICAL

  • Input Voltage: 200-240V ~ , 50/60Hz

  • Input power: 1800W

  • Power factor: PF≥0.98

  • Power Connector: Neutrik Powercon

DIMENSION AND WEIGHT

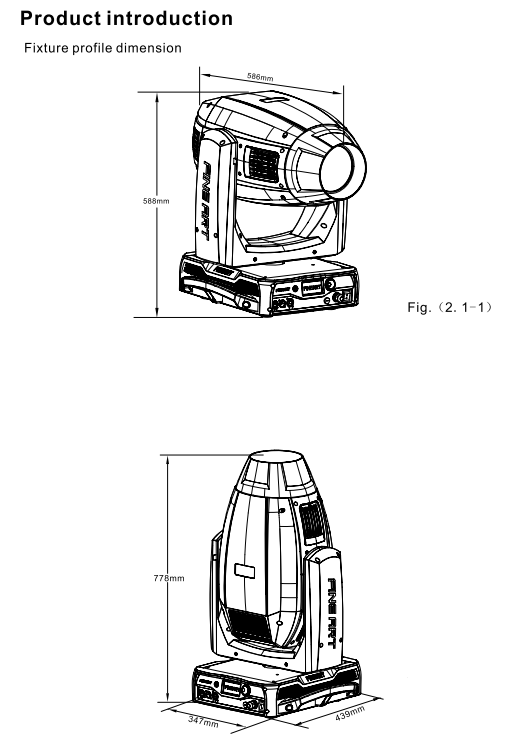

  • Fixture Dimension: 465mm x 439mm x 778mm

  • Shipping Dimension: 665mm x 520mm x 805mm (flight case)

  • Shipping Gross Weight: 78kg

  • Net Weight: 42.5kg (fixture)

IP Rating: 20

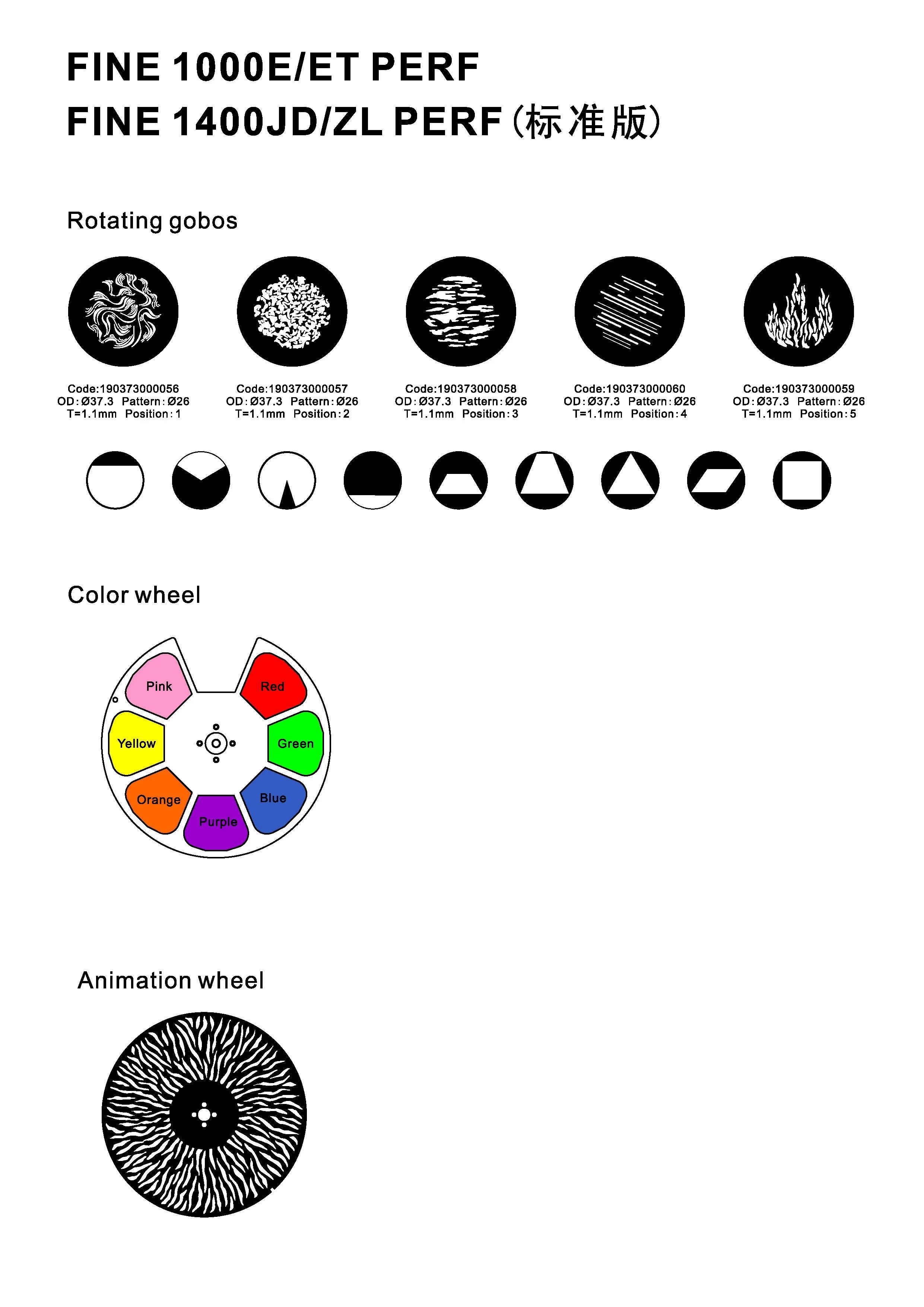

FINE 1400ZL PERF gobos&colors.jpg
