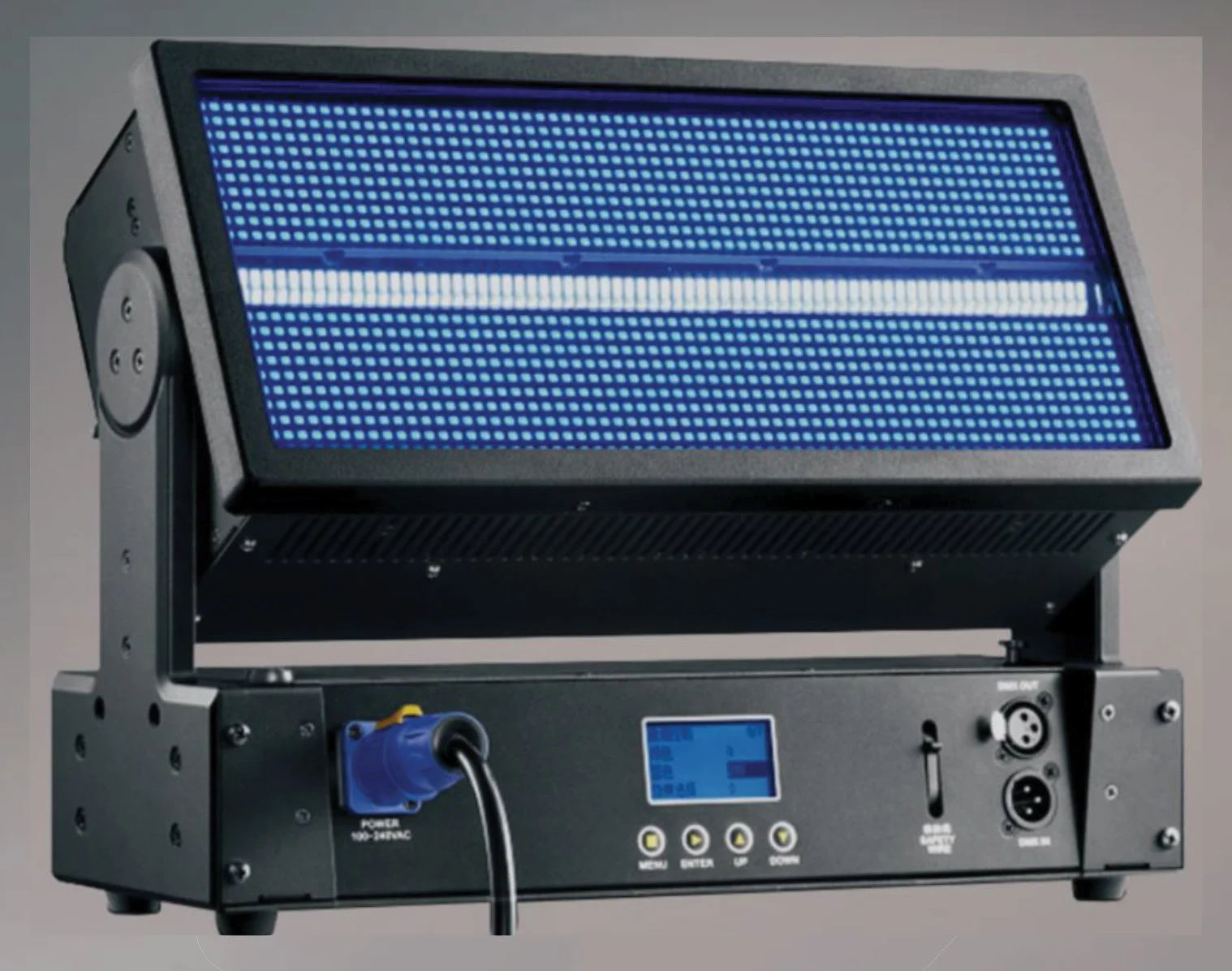

FINE 1200C
Specifications
1250W Strobe
OPTICAL
White Light Source: 180x 10W LEDS @6500k
Color Light Source: 1000x 0.2W LEDS, (RGB 3-in-1)
Light source life ≥ 50000 hours
Initial luminous flux and efficiency: 58898 lm. 61.28 lm/W
EFFECT
The flashing part in the middle of the fixture head is divided into ten sections; each section can be controlled independently.
Water flash beam effect can be achieved.
The two sides are above and below the center are divided into 40 sections, each section can be controlled independently and can be used for effects.
All optical domain dimming, 65536 grades of dimming accuracy
High light output
Fast strobe 1-25Hz
Color macro and color gradual change effects
94 kinds of color and 21 kinds of white built-in effects
0-100% dimmer
Setting of dimming curve
Constant current drive mode
MOVEMENT
Tilt: 182°
Precision: 0.94°/Step
Precision Fine: 0.0037°
ELECTRONIC CONTROL
Protocol: DMX512, ArtNet, sACN
Channel Mode: Standard 23 /RGB 138 /SIMP 16/ RGB8+130
Control Panel: LED screen + buttons
Data Connector: 3Pin DMX and RJ45 in/out (built-in switch）
Cooling: Internal controllable active fan cooling
Temperature sensor detection
DMX channel level monitoring
Fixture information query
RDM data bidirectional transmission
ELECTRICAL
Input Voltage: 100-240V ~ , 50/60Hz
Input power: 1250W
Power factor: PF≥0.98
Power Connector: Neutrik Powercon

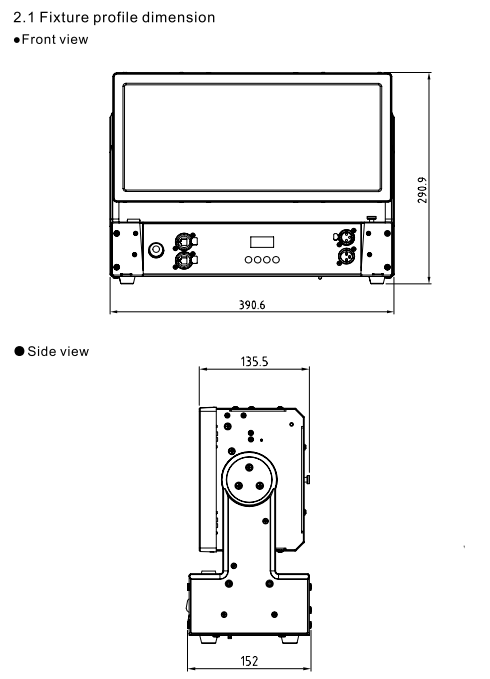

DIMENSION AND WEIGHT
Fixture Dimension: 391mm x 152mm x 291mm
Shipping Dimension: 1100mm x 600mm x 495mm
(4/flight case)
Shipping Gross Weight: 98.2kg
Net Weight: 11kg (fixture)
IP Rating: 20
